ZucZug Retail Xintiandi
素然服饰新天地概念店
ZUCZUG素然是国内著名服装品牌,由服装设计师王一扬任设计总监。新天地概念店是目前国内为数不多的,由时装设计师和建筑师合作完成的服装专卖店。

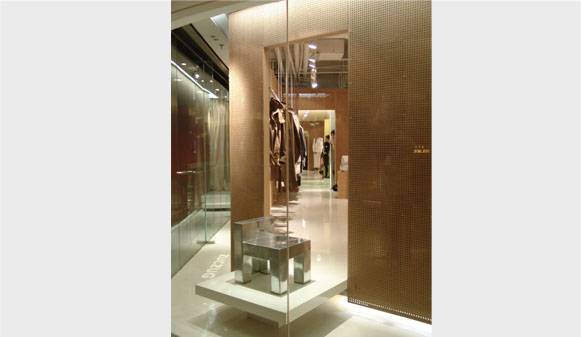

设计从“包装盒”概念出发,在面积不大、弧形的玻璃围合的独立店铺内,再造一个底部悬空的多边形空间。盒子不规则的墙体与原有弧形玻璃限定出多变的缝隙空间,可以满足专卖店的橱窗展示功能。同时,悬挑的T台使得顾客的活动、服饰及模特同时被展示,以强烈的戏剧性和冲突感创造了视觉的冲击性。

材质使用上在一贯平实、纯粹的特点上,主体钢结构外包5mm厚高密度纤维穿孔板,在白色自流平地面的漫射光衬托下,通透的盒子呈现丰富的光影效果,远远看去,象漂浮在空中一般。

Zugzuc is one of the most famous chinese fashion brandings. Its designer WANG Yiyang invited DAtrans to collaborate for the shop in Xintiandi.

"Floating Box" is the primary concept of this design.The box with geometric shape looks like being hanged from the ceilingwith four surfaces being cut and laying down. The additional boxwith the irregular shape followed the original glass facade. The space between the two layers could be used as the show window. The extending fl oor-slab from the cutout could be the stage of the activity of the people and the clothes inside. The spaces's concept based on the courtyard building type. So the different functional space looks like the series of the courtyards, entraneand backyard. The construction of the box is: timber, I-beam and wooden mesh which covered by plywoods and high strength plasterboards in order to control the thickness of the floor. The wall of the box with a mullion frame connected by U-beam.

All these components compose of the whole steel-wood supporting system. Holed beaverboard used on two sides of the wall becoming a transparent enclosed fi lter with a phantasmagoric light merged effect.

项目类型:室内设计
项目状态:委托/建成
项目地址:上海新天地
设计时间:2005.10-11
施工时间:2005.11-12
功能描述:服装专卖店
结 构:加建钢结构
主要材料:石膏板粉刷墙、穿孔密度板、自流坪地面
设计团队:陈旭东、鲍伟
结构设计:马骥
工程监理:杨帆
地坪:上海瑞涂化学公司
地坪板材:德国KNAUF公司

Type: Interior
Status: Project, Completion
Location: Xintiandi, Shanghai
Design Period:10-11.2005
Construction: 11-12.2005
Program: Retail
Main Materials: Plywood panel, Plasterboard curtain wall, Synthetic Resin Flooring
Design Team: CHEN Xudong, BAO Wei,LI Weidong
Structure Consultant: MA Ji
Construction Supervisor: YANG Fan
Flooring: Shanghai Ruitu Chemical Product Co.Ltd
Floor Plasterboard: KNAUF
